Information & Sample Instruction Sheets

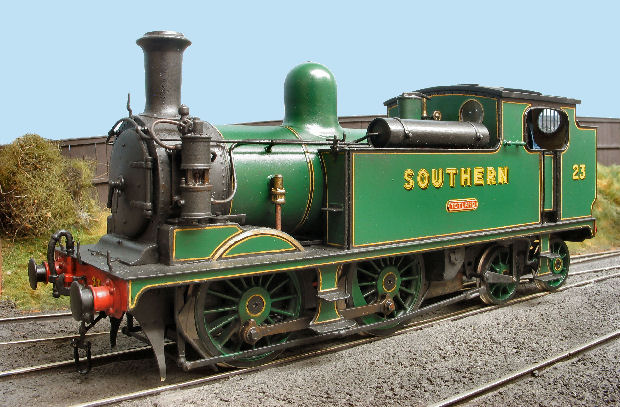

Southern Railway Class 02, 0-4-4 Tank

  PROTOTYPE. These locos were built by the LSWR for working a wide range of secondary passenger, branch line and local goods duties. From London Suburban services to West Country branch lines but their iconic work was performed on Isle of Wight summer holiday trains.

  KIT. The body and chassis components are a mixture of brass and heavier nickel silver. This is a very detailed kit with a lot of small fittings, pipework and cab interior detail. A range of fittings to cover changes through to BR days and alternative coal bunkers for Mainland and Isle of Wight versions are provided.

Link to
Prototype Information

Kit Reference Code
CL - 02
Sorry Kit Out of Stock
Kit Price £---.--
Print Off Order Form pdf file
- Additional Components Required to Complete -
- Motor and Gear Set -
I recommend my own 1833 motor and 40/1 gear set.
More Information About Motors
- Wheels -
2 Sets 4'10", 16 spoke driving wheels (Slater's Catalogue Number 7858SW),
2 Sets 3', 9 spoke bogie wheels (Slater's Catalogue Number 7836SW). This wheel uses a smaller diameter axle than standard so if required obtain the appropriate wheel key when ordering. Slater’s Plastikard, Old Road, Darley Dale, Matlock, Derbyshire, DE4 2ER, Telephone 01629 734053.
More Information About Wheels
- Optional Plunger Electrical Pickups -
If these are desired as an alternative to the wire wiper pickups that are included in the kit. I would recommend the type produced by Slater's and provision is made in the kit chassis for fitting these (Slater's Cat No 7157).
More Information About Pickup Systems
Sorry Kit Out of Stock, Back Early July?
Approximate Cost of Completing The Model
Kit - £--- + Motor/Gears - £45 + Slaters Wheels - £96 = £---
- Download 02 Locomotive Instructions as PDF Print Off -
  Downloading these instruction booklets will allow you to evaluate the kit and its construction and help you to determine its suitability for yourself and your project.
Download Southern 02 Body Assembly Instruction Booklet
